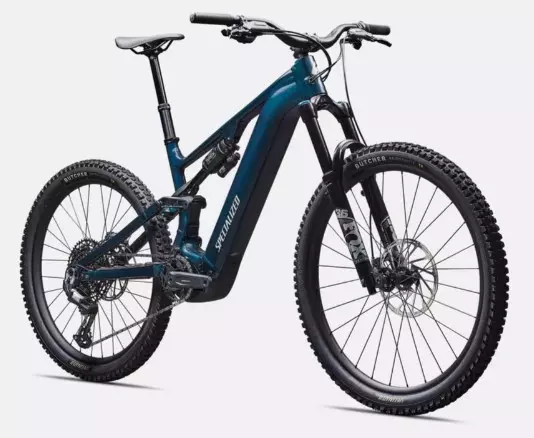

Specialized Turbo Levo 4 Comp Alloy Gloss Deep Lake Metallic / Dune White

Technical Specifications
E-bike
UI/Remote

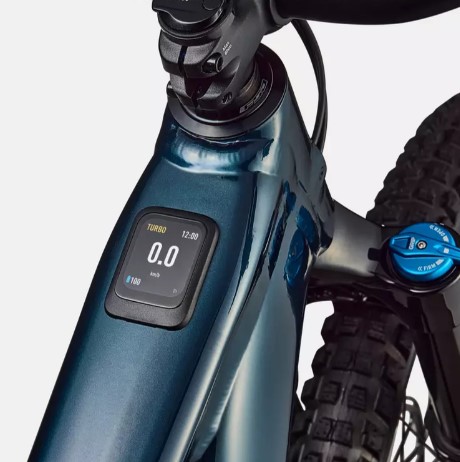

All New MasterMind T3 Display System, 2.2″ high resolution color screen, fully customizeable with Specialized App
Motor
Specialized 3.1 Motor, 101Nm torque, 666Nm power
Charger
Specialized 4amp charger
Battery
840Wh battery
Frameset
Seat Binder
Alloy, 38.6mm
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29″ front wheel/27.5″ rear wheel, fork travel up to 180mm
Suspension
Rear Shock
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Fork
FOX 36 Rhythm, 29″, S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Cassette
SRAM XS-1275, 12-speed, 10-52t
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Chain
SRAM GX Eagle T-Type Flattop Chain, 12-speed
Shift Levers
SRAM 90 trigger, 12-speed, single click
Rear Derailleur
SRAM Eagle 90 T-Type
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
Rear Tire
Butcher, GRID GRAVITY Casing, Gripton T9 compound 27.5X2.4
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5×2.4″
Spokes
DT Swiss Industry
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Grips
Specialized Trail Grips
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
Accessories
SWAT
SWAT Internal downtube storage
Product details
Product ID
221344
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
Weight
24.42 kg (53 lb, 13.4 oz)
Weight Size
S4
